Peeled bar
Aceros
Austeníticos
Ferríticos
Dúplex
Productos
Producto Largo
Barra Descortezada

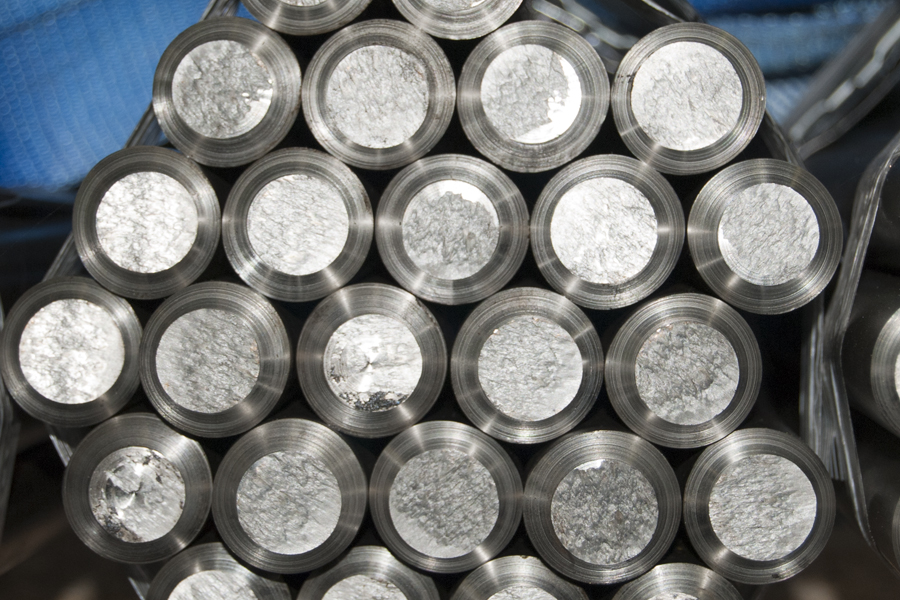

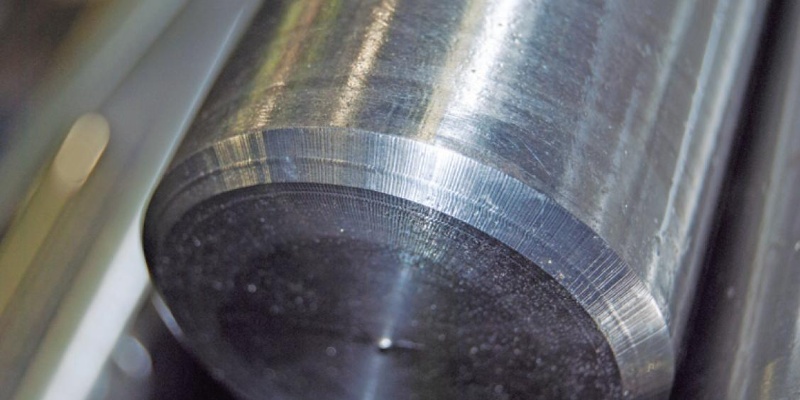

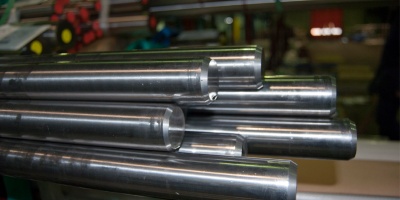

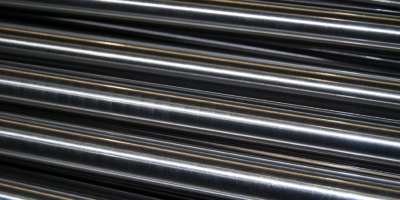

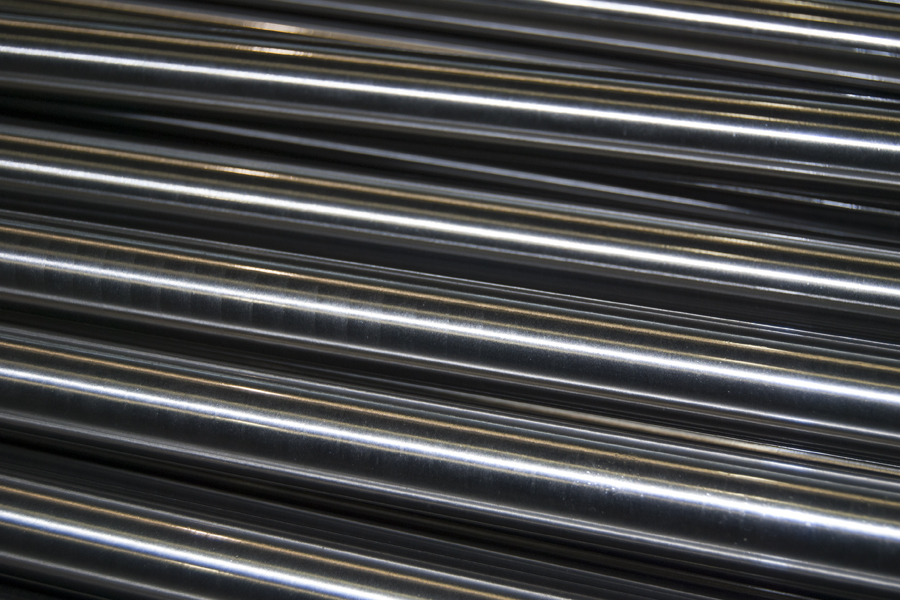

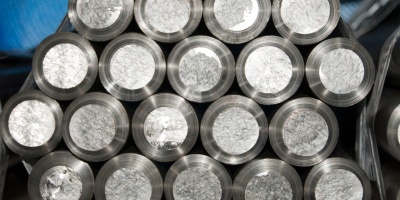

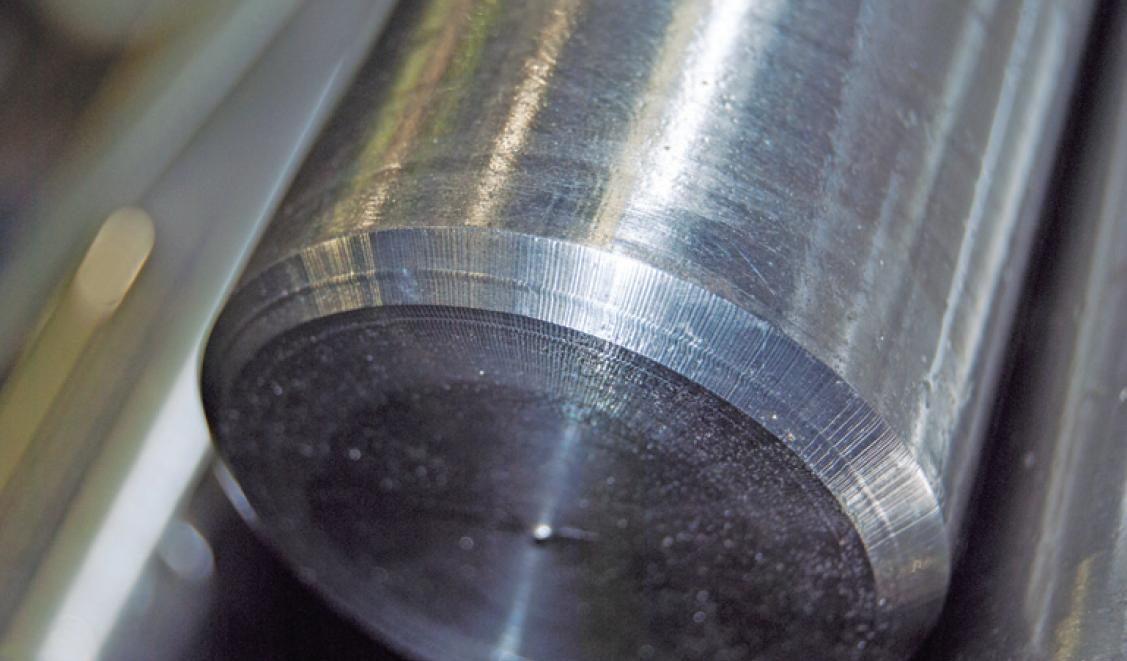

Hot rolled, peeled, straightened and cut product.
Description
| Finish | Description | Finish according to 10088:2005 |
|---|---|---|
| 30 | Peeled round bar | 1X |
| 31 | Peeled round bar | 2H |
| 33 | Peeled and polished round bar | 2B |
| 34 | Peeled, centerless ground and polished round bar |
2G |
Delivery / length / tolerance
| Ø | Length | Tolerance (mm) | Straightness | Ovalshape |
|---|---|---|---|---|
| 22.51-40.30 | 3000-7000 | +25 | 1 | máx. 50% del intervalo de tolerancia |
| 40.31-85.72 | 3100-4100 5100-6100 |
+100 | ||
| 85.73-110.30 | 3100-4100 5100-6100 |
+200 |
Specifications may vary according to grade and finish. Other dimensions on request.
Short bars: 10% allowed (minimum length 2800 mm)
Mechanical properties (for guidance only)
| Ø | Rm (MPa) | Rp0.2% (MPa) | Rp1.0% (MPa) | A5 (%) |
|---|---|---|---|---|
| 22.51-110.30 | 480-690 | >250 | >300 | >40 |
Size tolerance
| Ø | Finish 30 | Finish 31 | Finish 32 | Finish 34 |
|---|---|---|---|---|
| 22.51-30.00 | h11-k11-k12 | h11-h10 | h9 | h8-h9 |
| 30.01-40.30 | h11-k11-k12 |
h11-h10 |
h9 | h8-h9 |
| 40.31-90.49 | h11-k11-k12 | h11-h10 | h9 | h8-h9* |
| 90.50-110.30 | h12-k12 | -- | -- | -- |
*to 85,72 mm
Other tolerances, ASTM, k, etc., whenever the interval will be the same or higher than the tolerance on the previous table.
Important
Data subject to changes according to international standards and working practices.
Other grades on request: customer.service@acerinox.com
